Transformation of Stirring Tanks for a Lithium Battery Material Manufacturing Company

Background:

In the field of new energy materials, our direct drive motors have helped customers from a Lithium battery material manufacturing company solve the problems of low efficiency and high energy consumption in the transmission process of stirring tanks.

Before Retrofit:

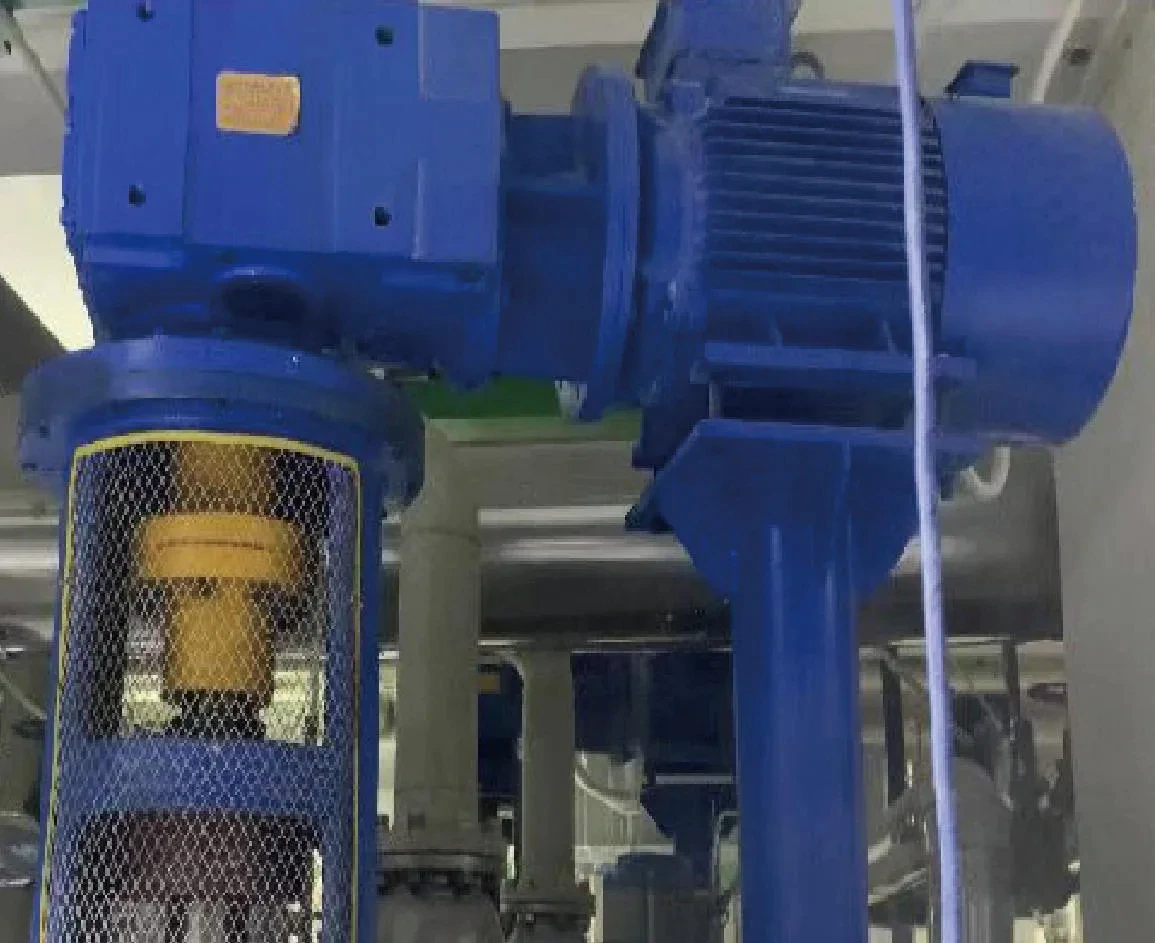

  • The original drive system consisted of an asynchronous motor and a gear reducer.
  • Oil leakage of the gear reducer
  • Loud noise
  • High maintenance costs
  • Low transmission efficiency
  • High energy consumption

Solution And After Retrofit:

  • The modified drive system uses a Ciitto Servo permanent magnet synchronous motor to drive the load directly.
  • Eliminate the gear reducer
  • Reduce maintenance work
  • Lower noise
  • Improve the transmission efficiency of the system
  • Reduce energy consumption
  • The energy efficiency was increased by 27%.

Conclusion:

Comparison Before After
Equipment Asynchronous motor + gear reducer Synchronous motor
Specification 30kW-1.470r/min 15kW-150r/min
Power consumption 77,902 kWh/1year 56,633 kWh/1year
