PMSM Retrofit Case For Chemical Tank – 47% Energy Savings
Background:

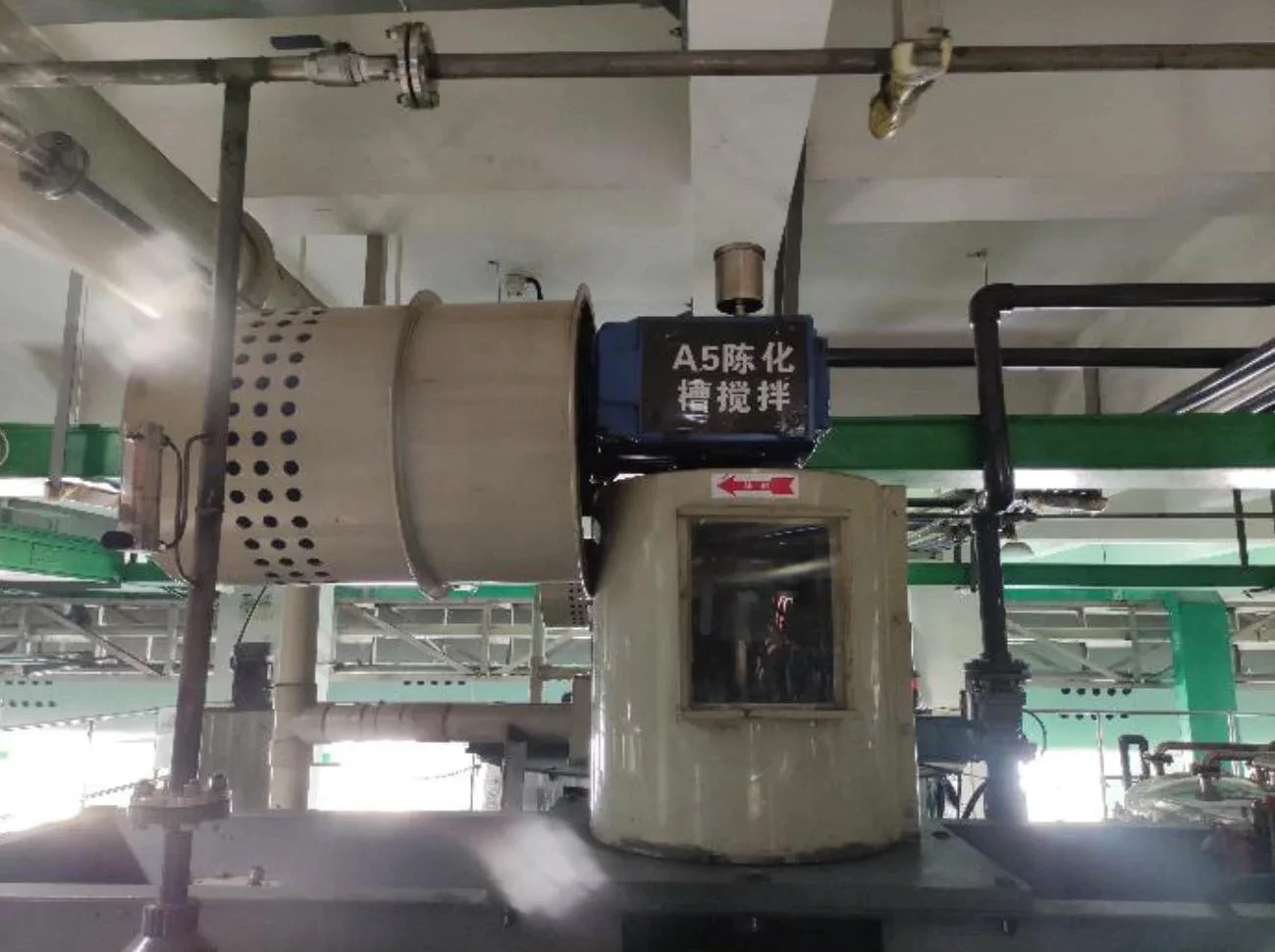

By replacing the original 15kW asynchronous motor with a 5.5kW permanent magnet synchronous motor (PMSM), we achieved a remarkable 47% energy saving. This significant reduction in power consumption not only lowers operational costs but also enhances equipment efficiency. This retrofit case clearly demonstrates how Ciitto Servo's PMSM solutions help clients save energy and money while upgrading their production systems.
Conclusion:
| Before | After | ||||||
| Motor model | DRN 160L4 | Gearbox speed ratio | 16.56 | Motor model | TYGXP-132M | Gearbox speed ratio | 16.56 |
| Reducer model | KF97 | output speed/rpm | 86 | Reducer model | KF97 | output speed/rpm | / |
| Rated power/kW | 15 | output torque/N*m | 1610 | Rated power/kW | 5.5 | output torque/N*m | / |
| rated speed/rpm | 1474 | Working frequency/Hz |
20 | rated speed/rpm | 1500 | Working frequency/Hz | 30 |
| power factor/cos |
0.8 | Efficiency/% | 92.1 | power factor/cos |
/ | Efficiency/% | 92.1 |
Power Consumption Comparison
| Time | Asynchronous Group (kWh) | PMSM Retrofit Group (kWh) | Energy Saving Rate (%) |
| 2022-11-01 | 4576 | 2934.4 | 47% |
| 2022-12-01 | 5316.8 | 3326.6 | |
| Total Power Saved | 740.8 kWh - 392.2 kWh | ||
